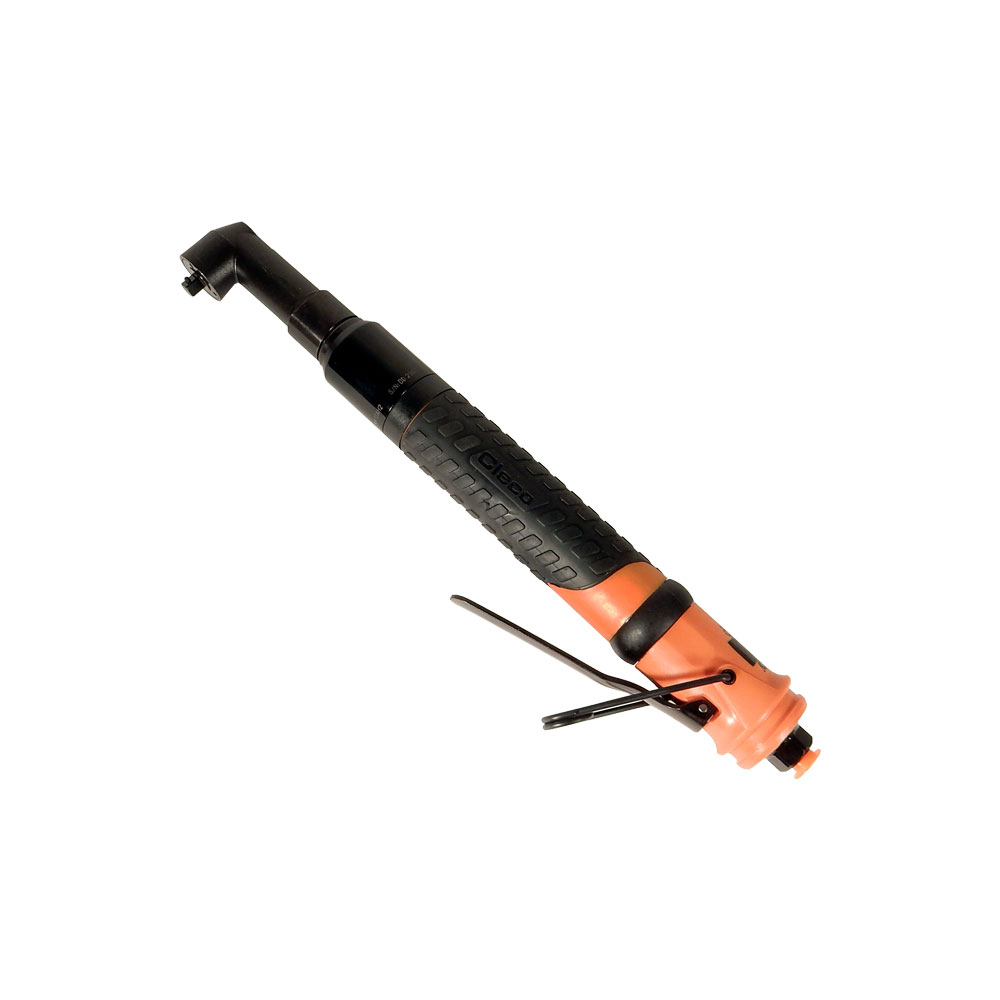

19RAA04AM2 Cleco Pneumatic Clecomatic Clutch 19 Series Reversible Angle Nutrunner

Price: Price On Request

Part Number: 19RAA04AM2

Cleco Pneumatic Clecomatic Clutch 19 Series Reversible Angle Nutrunner Square Drive: 1/4” Torque Range Tool Range: 12-42in-lbs. 1.4-4.7Nm Torque Range with Std. Spring: 12-42in-lbs. 1.4-4.7Nm Free Speed (rpm): 950 Overall Length: 12.0” / 305mm

Add to Quote

19RAA04AM2 Cleco Pneumatic Clecomatic Clutch 19 Series Reversible Angle Nutrunner Description

Cleco Pneumatic Clecomatic Clutch 19 Series Reversible Angle Nutrunner Description

Cleco 19 Series Angle Nutrunners, Reversible – Clecomatic Clutch feature class-leading accuracy and repeatability. Cleco 19 Series Angle Nutrunners, Reversible – Clecomatic Clutch also feature an external torque adjustment and a sliding knob reverse. Cleco 19 Series Angle Nutrunners, Reversible – Clecomatic Clutch are designed with either 1/4” or 3/8” square drive.

Cleco 19 Series Angle Nutrunners, Reversible – Clecomatic Clutch are designed with the operator in mind. They are small, lightweight and comfortable to use, and don’t sacrifice durability. They incorporate elastomer coatings, and perfectly balanced moving parts to keep vibration to a minimum. This optimal combination of tool characteristics allows the operator to focus doing the best job possible, in the least amount of time. Cleco 19 Series Angle Nutrunners, Reversible – Clecomatic Clutch meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. Since these types of applications typically require a high material removal rate, Cleco Nutrunners incorporate high horsepower/high RPM motors.

Technical Specifications

Additional information

Square Drive

1/4''

Torque Range Tool range

12-42in-lbs. 1.4-4.7Nm

Torque Range w/ Std Spring

12-42in-lbs. 1.4-4.7Nm

Free Speed (rpm)

950

Overall Length

12.0'' / 305mm

Weight

1.7lbs / 0.8kg

Head Height

1.06'' / 27mm

Side To Center

0.36'' / 9mm

Air Inlet NPT

1/8''

Min. Hose I.D

3/16''

SCFM

11
