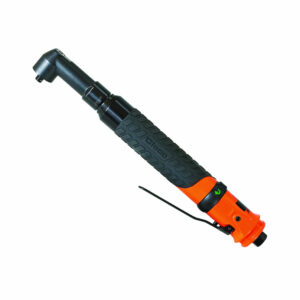

19RAS04AH2 Cleco Pneumatic Stall 19 Series Reversible Angle Nutrunner

Price: Price On Request

Part Number: 19RAS04AH2

Cleco Pneumatic Stall 19 Series Reversible Angle Nutrunner Square Drive: 1/4” Max Torque: 2.6ft-lbs. / 3.6Nm Free Speed (rpm): 1,500 Overall Length: 11.2” / 284mm Weight: 1.4lbs / 0.6kg Head Height: 1.19” / 30mm Side to Center: 0.5” / 13mm

Add to Quote

19RAS04AH2 Cleco Pneumatic Stall 19 Series Reversible Angle Nutrunner Description

Cleco Pneumatic Stall 19 Series Reversible Angle Nutrunner Description

Cleco 19 Series Angle Nutrunners, Reversible – Stall are designed with a lever start. Cleco 19 Series Angle Nutrunners, Reversible – Stall feature a sliding knob reverse. Cleco 19 Series Angle Nutrunners, Reversible – Stall also feature a compact angle head for hard-to-reach areas.

Cleco 19 Series Angle Nutrunners, Reversible – Stall are designed with the operator in mind. They are small, lightweight and comfortable to use, and don’t sacrifice durability. They incorporate elastomer coatings, and perfectly balanced moving parts to keep vibration to a minimum. This optimal combination of tool characteristics allows the operator to focus doing the best job possible, in the least amount of time. Cleco 19 Series Angle Nutrunners, Reversible – Stall meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. Since these types of applications typically require a high material removal rate, Cleco Nutrunners incorporate high horsepower/high RPM motors.

Technical Specifications

Additional information

Square Drive

1/4''

Max Torque

2.6ft-lbs. / 3.6Nm

Free Speed (rpm)

1, 500

Overall Length

11.2'' / 284mm

Weight

1.4lbs / 0.6kg

Head Height

1.19'' / 30mm

Side To Center

0.5'' / 13mm

Air Inlet NPT

1/8''

Min. Hose I.D

3/16''

SCFM

11
