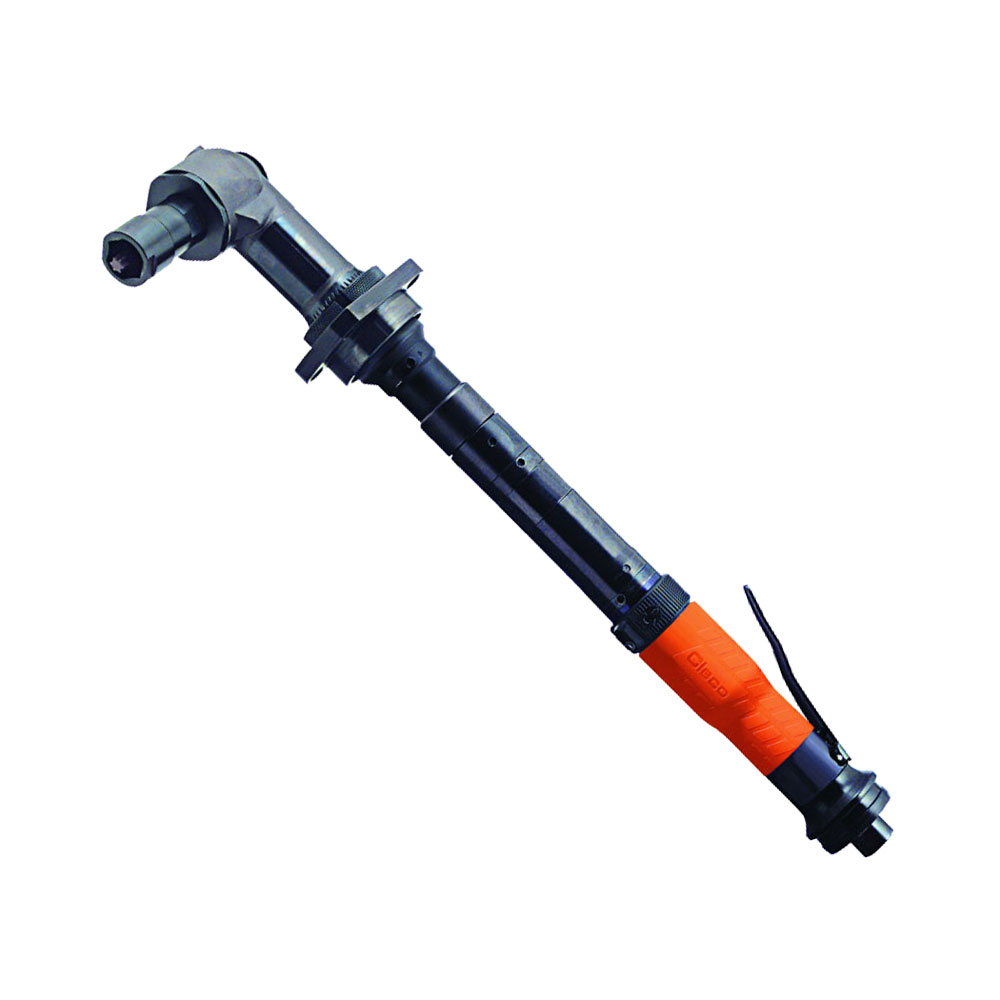

34RAA67H Cleco Pneumatic Clecomatic Clutch 43 Series Hold & Drive Nutrunner

Price: Price On Request

Part Number: 34RAA67H

Cleco Pneumatic Clecomatic Clutch 43 Series Hold & Drive Nutrunner Hold Size: 7mm Female Hex Torque Range: 24-49ft-lbs. / 33-67Nm Free Speed (rpm): 265 Overall Length: 20.7” / 526 Weight: 8.0lbs / 3.5kg Head Height: 2.4” / 61mm Side to Center: 1.06”

Add to Quote

34RAA67H Cleco Pneumatic Clecomatic Clutch 43 Series Hold & Drive Nutrunner Description

Cleco Pneumatic Clecomatic Clutch 34 Series Hold & Drive Nutrunner Description

Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible features an external torque adjustment. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible is also designed with an indexable head for hard-to-reach areas. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible features a 1” retraction of hold spindle. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible also features oilless blades and one torque spring to meet specified range.

Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible are designed with the operator in mind. They are small, lightweight and comfortable to use, and don’t sacrifice durability. They incorporate elastomer coatings, and perfectly balanced moving parts to keep vibration to a minimum. This optimal combination of tool characteristics allows the operator to focus doing the best job possible, in the least amount of time. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. Since these types of applications typically require a high material removal rate, Cleco Nutrunners incorporate high horsepower/high RPM motors.

Technical Specifications

Additional information

Hold Size

7mm Female Hex

Torqur Range

24-49ft-lbs. / 33-67Nm

Free Speed (rpm)

265

Overall Length

20.7'' / 526

Weight

8.0lbs / 3.5kg

Head Height

2.4'' / 61mm

Side To Center

1.06'' / 27mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''

SCFM

34

34RAA67H Cleco Pneumatic Clecomatic Clutch 43 Series Hold & Drive Nutrunner Description

Cleco Pneumatic Clecomatic Clutch 34 Series Hold & Drive Nutrunner Description

Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible features an external torque adjustment. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible is also designed with an indexable head for hard-to-reach areas. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible features a 1” retraction of hold spindle. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible also features oilless blades and one torque spring to meet specified range.

Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible are designed with the operator in mind. They are small, lightweight and comfortable to use, and don’t sacrifice durability. They incorporate elastomer coatings, and perfectly balanced moving parts to keep vibration to a minimum. This optimal combination of tool characteristics allows the operator to focus doing the best job possible, in the least amount of time. Cleco 34 Series Hold & Drive Nutrunners, Clecomatic Clutch – Lever Start – Reversible meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. Since these types of applications typically require a high material removal rate, Cleco Nutrunners incorporate high horsepower/high RPM motors.

Additional information

Hold Size

7mm Female Hex

Torqur Range

24-49ft-lbs. / 33-67Nm

Free Speed (rpm)

265

Overall Length

20.7'' / 526

Weight

8.0lbs / 3.5kg

Head Height

2.4'' / 61mm

Side To Center

1.06'' / 27mm

Air Inlet NPT

3/8''

Min. Hose I.D

5/16''

SCFM

34
