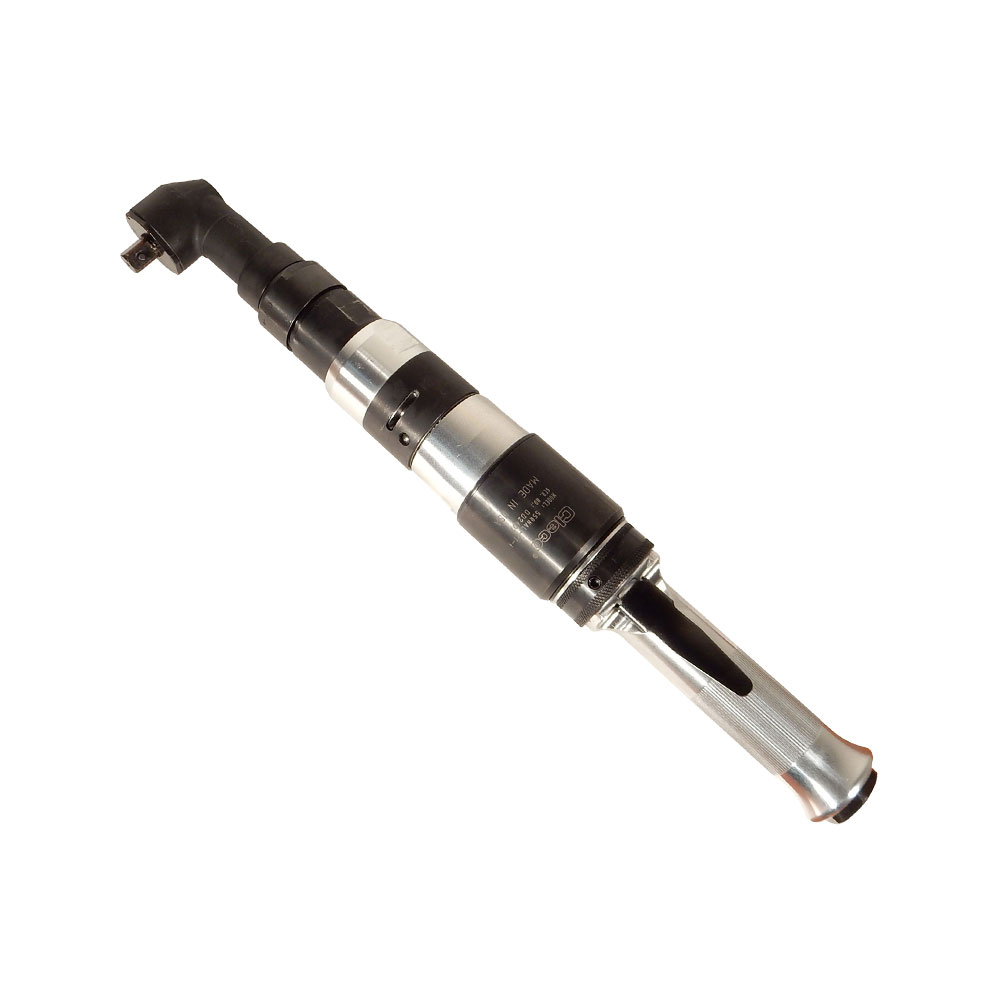

55RNAL-4P-4 Cleco Pneumatic Clecomatic Clutch 55 Series Reversible Lever Start Angle Nutrunner

Price: Price On Request

Part Number: 55RNAL-4P-4

Cleco Pneumatic Clecomatic Clutch 55 Series Reversible Lever Start Angle Nutrunner Square Drive: 1/2” Torque Range: 26-54ft-lbs. / 35-73Nm Free Speed (rpm): 330 Overall Length: 19.1” / 486mm Weight: 7.4lbs / 3.3kg Head Height: 1.6” / 41mm

Add to Quote

55RNAL-4P-4 Cleco Pneumatic Clecomatic Clutch 55 Series Reversible Lever Start Angle Nutrunner Description

Cleco Pneumatic Clecomatic Clutch 55 Series Reversible Lever Start Angle Nutrunner Description

Cleco 55 Series Angle Nutrunners, Reversible – Clecomatic Clutch – Lever Start feature an external torque adjustment. Cleco 55 Series Angle Nutrunners, Reversible – Clecomatic Clutch – Lever Start also feature a rotating exhaust deflector. Cleco 55 Series Angle Nutrunners, Reversible – Clecomatic Clutch – Lever Start are designed with a 1/2” design.

Cleco 55 Series Angle Nutrunners, Reversible – Clecomatic Clutch – Lever Start are designed with the operator in mind. They are small, lightweight and comfortable to use, and don’t sacrifice durability. They incorporate elastomer coatings, and perfectly balanced moving parts to keep vibration to a minimum. This optimal combination of tool characteristics allows the operator to focus doing the best job possible, in the least amount of time. Cleco 55 Series Angle Nutrunners, Reversible – Clecomatic Clutch – Lever Start meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications. Since these types of applications typically require a high material removal rate, Cleco Nutrunners incorporate high horsepower/high RPM motors.

Technical Specifications

Additional information

Square Drive

1/2''

Torque Range

26-54ft-lbs. / 35-73Nm

Free Speed (rpm)

330

Overall Length

19.1'' / 486mm

Weight

7.4lbs / 3.3kg

Head Height

1.6'' / 41mm

Side To Center

0.7'' / 18mm

Angle Head

P

Air Inlet NPT

1/2''

Min. Hose I.D

1/2''

SCFM

55
