Hi-Lok® socket with set screw retainer, 3/16” hex opening, 1/4” female square drive, 7/8” OAL. Replaces Hi-Shear® HLH102-187 and ATI ATSK3596-19

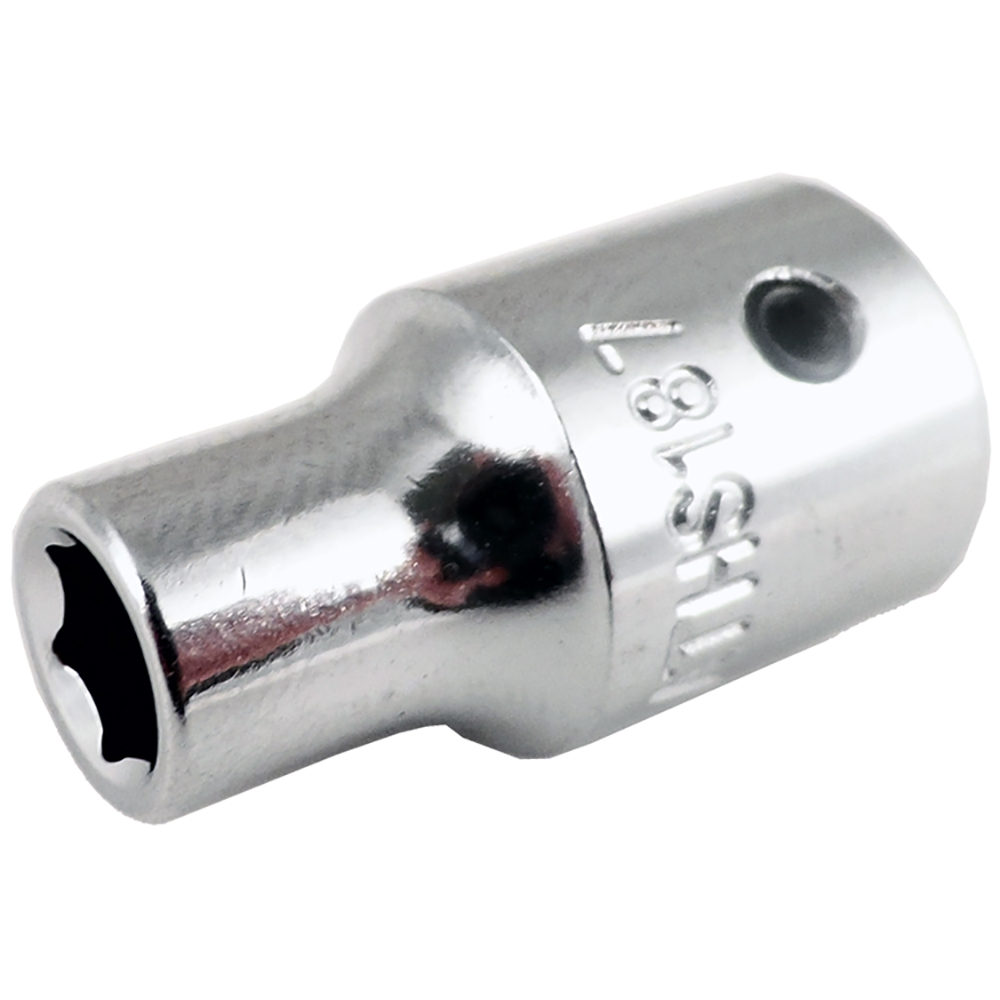

ATHS187 Hi-Lok 3/16” Installation Socket Description
Hi-Lok® installation socket with set screw retainer. These anti-FOD sockets are manufactured to fit conventional square drives. Hi-Lok® installation sockets feature a generous through-hole to enable the use of hex keys when necessary for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations.
A set screw is provided to positively retain the sockets onto the square drives as an anti-FOD measure.
| Hex Opening | 3/16'' |
|---|---|
| Square Drive Size | 1/4'' |
| Nose Diameter | 0.312 |
| Overall Length | 0.86 |
| Equivalent Part Numbers | ATI ATSK3596-19, Hi-Shear® HLH102-187 |
Hi-Lok® installation socket with set screw retainer. These anti-FOD sockets are manufactured to fit conventional square drives. Hi-Lok® installation sockets feature a generous through-hole to enable the use of hex keys when necessary for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations.
A set screw is provided to positively retain the sockets onto the square drives as an anti-FOD measure.
| Hex Opening | 3/16'' |
|---|---|
| Square Drive Size | 1/4'' |
| Nose Diameter | 0.312 |
| Overall Length | 0.86 |
| Equivalent Part Numbers | ATI ATSK3596-19, Hi-Shear® HLH102-187 |
