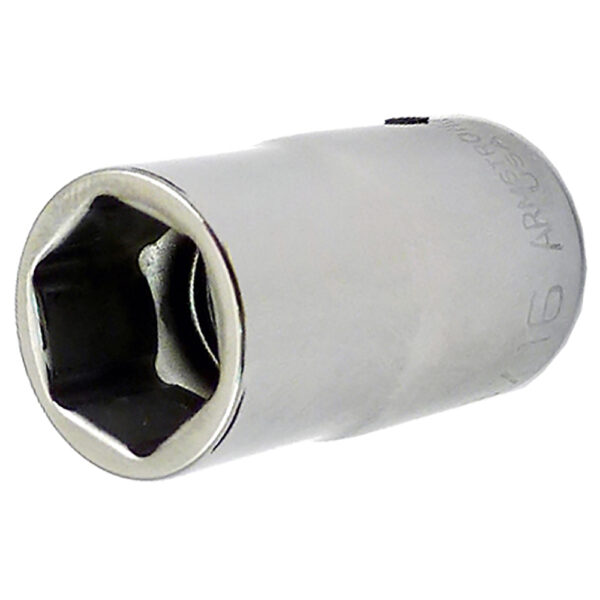

ATHS562 Hi-Lok Installation Socket 9/16”
Price On Request
Hi-Lok® socket with set screw retainer, 9/16” hex opening, 1/2” female square drive, 1.25” OAL. Replaces Hi-Shear® HLH102-562.
- Product Description
- Technical Specifications
Description
ATHS562 Hi-Lok 9/16” Installation Socket Description
Hi-Lok® installation socket with set screw retainer. These anti-FOD sockets are manufactured to fit conventional square drives. Hi-Lok® installation sockets feature a generous through-hole to enable the use of hex keys when necessary for Hi-Lok®, Hi-Lite®, and Hi-Tigue® installations.
A set screw is provided to positively retain the sockets onto the square drives as an anti-FOD measure.
Additional information
| Hex Opening | 9/16'' |
|---|---|
| Square Drive Size | 1/2'' |
| Nose Diameter | n/a |
| Overall Length | 1.25 |
| Equivalent Part Number | Hi-Shear® HLH102-562 |
