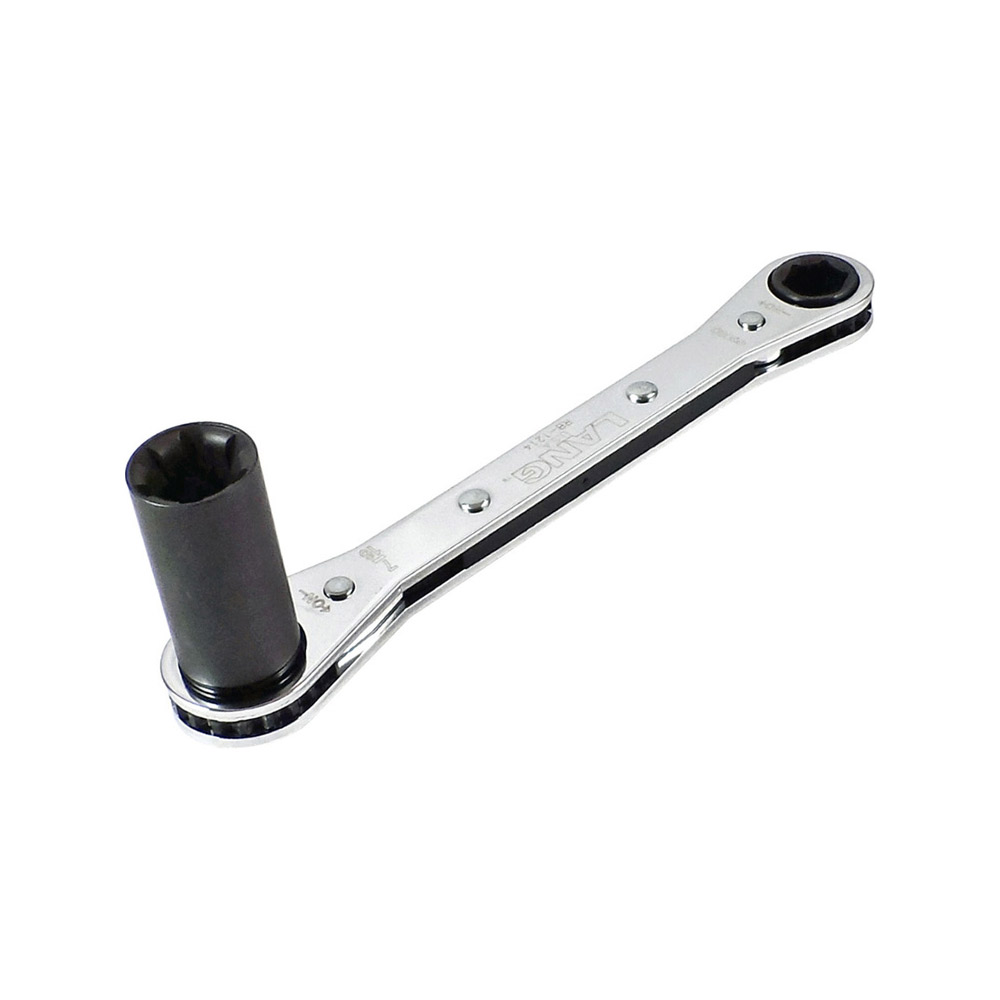

3/8” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, extended socket, replaces Hi-Shear® SWT15-37-1. Pin Size (in.): -12 Overall Length (in.): 5.50 Socket Height (in): 1.25 Socket Height (in): 0.77
6-Wing Collar Removal Tool 3/8” Description
3/8” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, extended socket. When fitted into the flat box-ratchet handle, these sockets provide easy removal, while at the same time preventing re-installation or re-use of the removed collars. New collars must be used to insure proper torque.
The Six-Wing® frangible collar is recognizable by the six-faceted, semi-spline arrangement of wings around the collar base. These collars are used in high strength applications, typically on fighter aircraft. Special tapered spline sockets were developed to remove these collars.
| Pin Size | -12 |
|---|---|
| Overall Length | 5.5 |
| Socket Height | 1.25 |
| Socket Diameter | 0.77 |
| Equivalent Part Numbers | Hi-Shear® SWT15-37-1 |
3/8” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, extended socket. When fitted into the flat box-ratchet handle, these sockets provide easy removal, while at the same time preventing re-installation or re-use of the removed collars. New collars must be used to insure proper torque.
The Six-Wing® frangible collar is recognizable by the six-faceted, semi-spline arrangement of wings around the collar base. These collars are used in high strength applications, typically on fighter aircraft. Special tapered spline sockets were developed to remove these collars.
