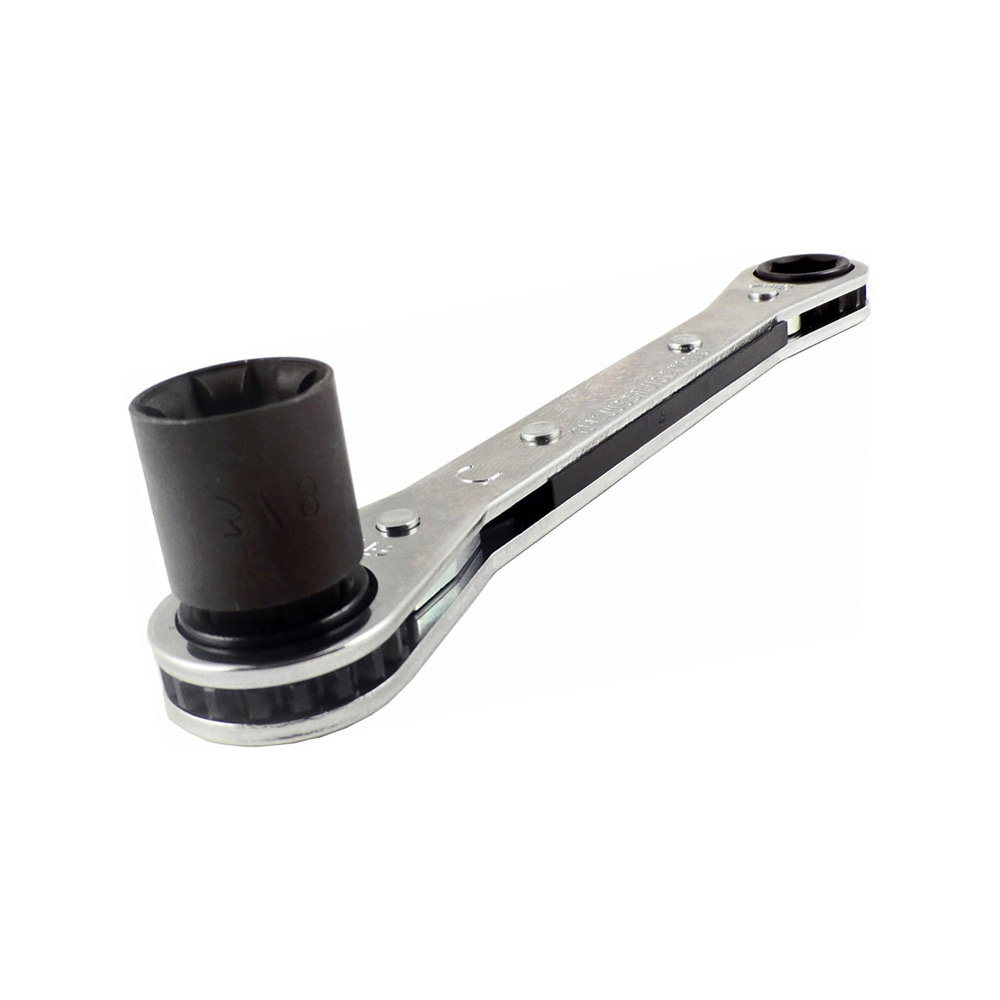

7/16” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, standard socket replaces Hi-Shear® SWT15-14, SWT15-43 Pin Size (in.): -14 Overall Length (in.): 5.50 Socket Height (in): 0.80 Socket Height (in): 0.92
6-Wing Collar Removal Tool 7/16” Description
7/16” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, standard socket. When fitted into the flat box-ratchet handle, these sockets provide easy removal, while at the same time preventing re-installation or re-use of the removed collars. New collars must be used to insure proper torque.
The Six-Wing® frangible collar is recognizable by the six-faceted, semi-spline arrangement of wings around the collar base. These collars are used in high strength applications, typically on fighter aircraft. Special tapered spline sockets were developed to remove these collars.
| Pin Size | -14 |
|---|---|
| Overall Length | 5.5 |
| Socket Height | 0.8 |
| Socket Diameter | 0.92 |
| Equivalent Part Numbers | Hi-Shear® SWT15-43 SWT15-14 |
7/16” Six-Wing® collar removal tool with ratchet and drive socket, straight handle, standard socket. When fitted into the flat box-ratchet handle, these sockets provide easy removal, while at the same time preventing re-installation or re-use of the removed collars. New collars must be used to insure proper torque.
The Six-Wing® frangible collar is recognizable by the six-faceted, semi-spline arrangement of wings around the collar base. These collars are used in high strength applications, typically on fighter aircraft. Special tapered spline sockets were developed to remove these collars.
| Pin Size | -14 |
|---|---|
| Overall Length | 5.5 |
| Socket Height | 0.8 |
| Socket Diameter | 0.92 |
| Equivalent Part Numbers | Hi-Shear® SWT15-43 SWT15-14 |
