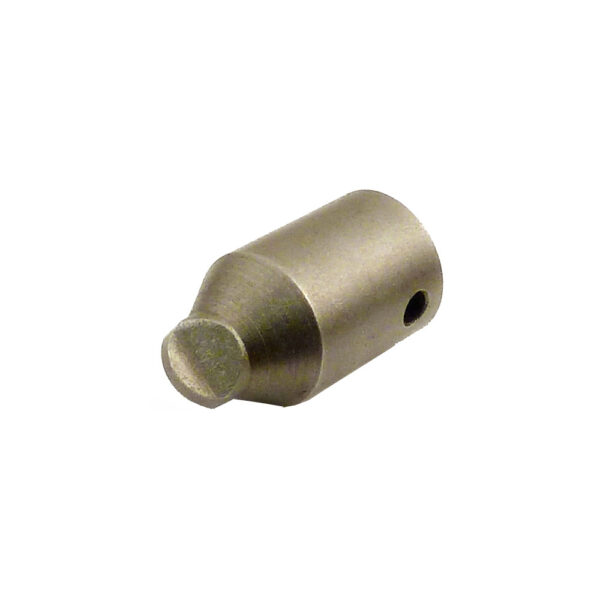

HTS-1 Bit For #1 Hi-Torque Recess
Price On Request
HTS-1 Bit For #1 Hi-Torque Recess. Socket Type, 1.00” OAL. Typically fits 3-48, 4-40, 5-40, and 6-32 thread size standard head, and also 8-32 reduced head style Hi-Torque recess fasteners.
- Product Description
- Technical Specifications
Description
HTS-1 Bit For #1 Hi-Torque Recess Description
Hi-Torque® bit that typically fits 3-48, 4-40, 5-40, and 6-32 thread size standard head, and also 8-32 reduced head style Hi-Torque® recess fasteners. The Hi-Torque® recess was designed to provide very high installation and removal torques, very shallow recess for use on 120° and 130° flush fasteners in thin skins, and to reduce the need for end-load of the driver by the operator while installing and removing screws.
Additional information
| Recess Size | HT1 |
|---|---|
| Bolt Nominal Diameter | #3, #4, #5, #6 |
| Drive | 1/4'' Female Square |
| Body Diameter | 0.5 |
| Head Diameter | 0.274 |
| Length | 1 |
