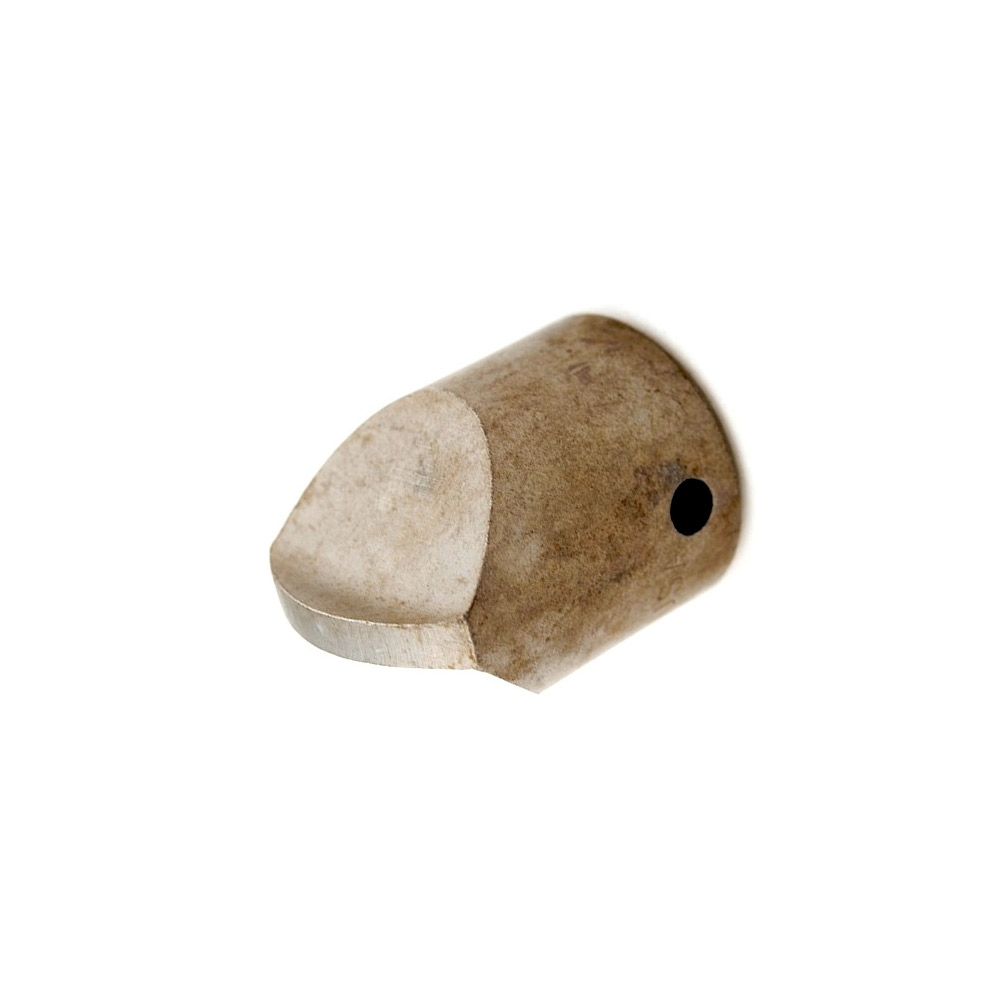

HTS9 Bit For #9 Hi-Torque Recess
Price On Request
HTS9 Bit For #9 Hi-Torque Recess. Socket Style: 1.62” OAL. Typically fits 9/16-18 thread size Hi-Torque recess fasteners including first and second oversize, plus 5/8-18 thread size reduced head style fasteners.
- Product Description
- Technical Specifications
Description
HTS9 Bit For #9 Hi-Torque Recess Description
Hi-Torque® bit that typically fits 9/16-18 thread size Hi-Torque® recess fasteners including first and second oversize, plus 5/8-18 thread size reduced head style fasteners. The Hi-Torque® recess was designed to provide very high installation and removal torques, very shallow recess for use on 120° and 130° flush fasteners in thin skins, and to reduce the need for end-load of the driver by the operator while installing and removing screws.
Additional information
| Recess Size | HT9 |
|---|---|
| Bolt Nominal Diameter | 9/16'' |
| Drive | 1/2'' Female Square |
| Body Diameter | 1.25 |
| Head Diameter | 1.14 |
| Length | 1.62 |
