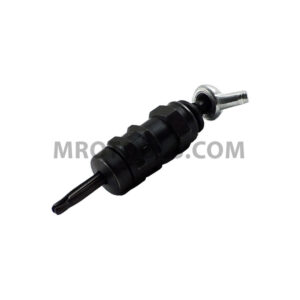

Standard (KWN) 0-1/2” Grip Wing-Nut Cleco Fastener Description

The wing-nut standard (KWN) series is a hand operated clamp with a wide range of grip force. It is best suited for low-production settings where additional tools (pliers, wrenches, ratchets, etc.) are not required. This allows for application in areas with limited space. The ‘free-wheeling’ wing-nut is easy to grip and will back completely off while still remaining intact with the body. Clamping force ranges from 12-300 lbs making it suitable for all types of metallic and composite materials.

The cleco fastener (sometimes spelled cleko), also known as a skin pin, is a fastener that was originally developed by the Cleveland Pneumatic Tool Company.

Cleco fasteners are widely used in the manufacture and repair of aluminum-skinned aircraft and in automotive repair, where they are used to temporarily fasten multiple sheets of material together before the pieces are permanently joined.

Equivalent Part Numbers:

Zephyr: KWN-FW1/4 Monogram: WNX-SF1/4 USI: TP109M1/4

MARTIN: MM439WNX6 USATCO: 04WNX1/4 ATI: AT556WNX
