NPJ518PF Single Wing Miniature Nut Plate Jig (SWM)
Price On Request

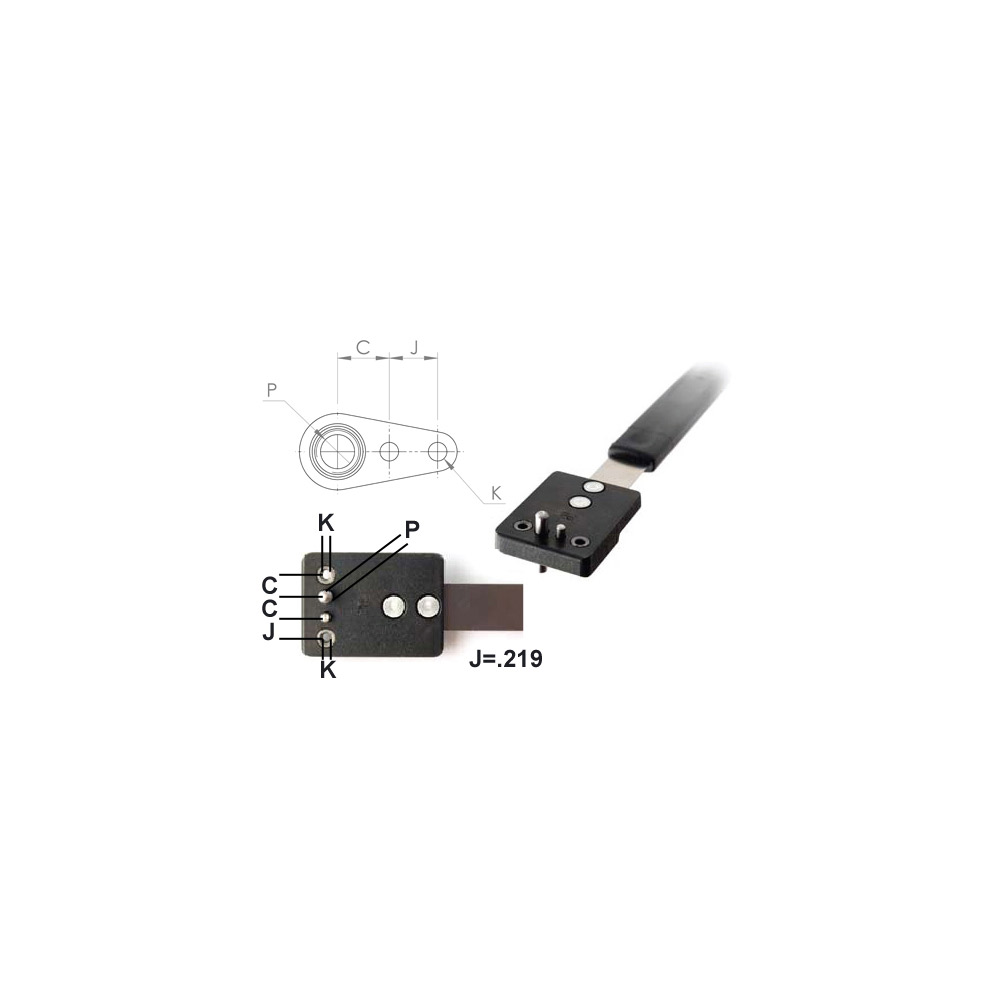

Nut Thread Reference: – (C)Hole Spacing: 0.250 (J)Hole Spacing: .219 (P)Pilot Diameter: 0.1875 (K)Drill Size: #40
- Product Description
- Technical Specifications
Description
Single Wing Miniature Nut Plate Jig (SWM) Description
Single wing miniature nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies’ hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
Additional information
| Nut Thread Reference | – |
|---|---|
| (C) Hole Spacing | 0.25 |
| (P) Pilot Diameter | 0.1875 |
| (K) Drill Size | #40 |
| Equivalent Part Numbers | AT518PF |
