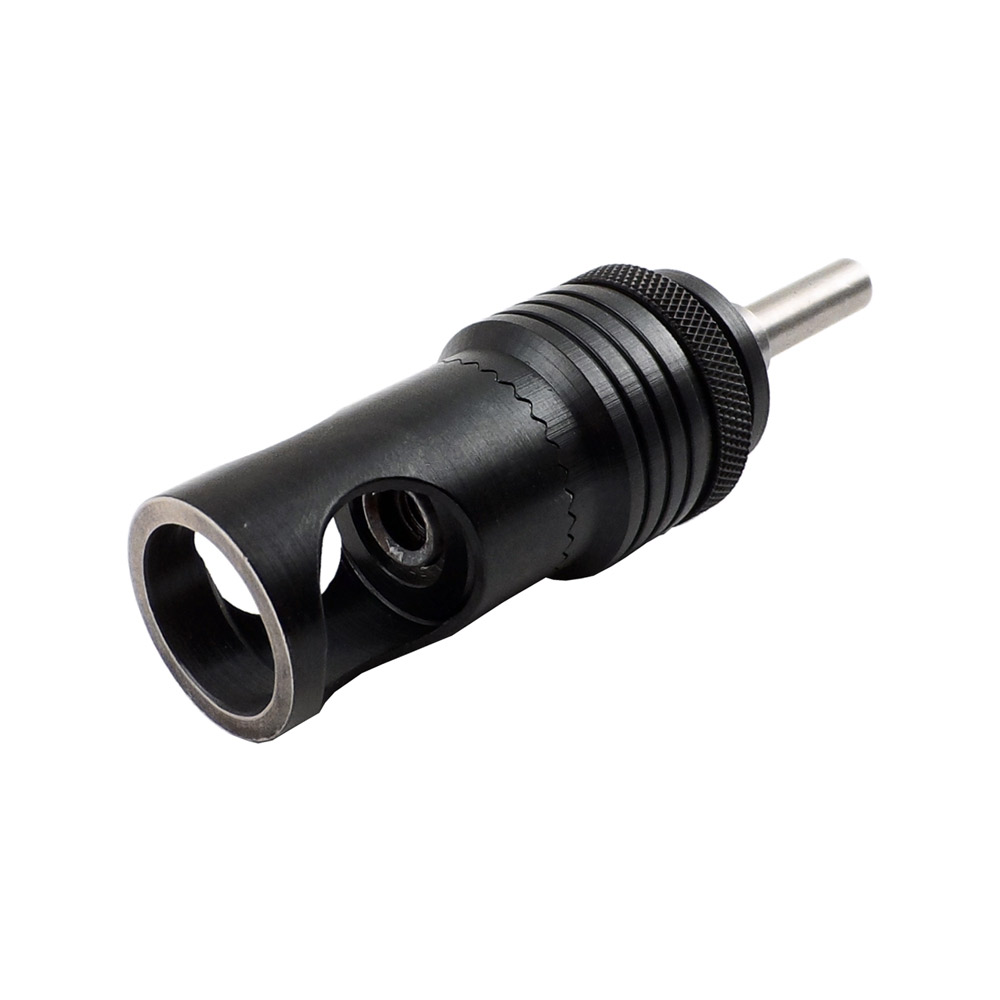

OM565 Microstop Cage
Price On Request
Cutter Capacity: 5/8” Shaft Travel: 5/16” Spindle Thread: 1/4”-28 Max RPM: 10000 Skirt Diameter: 0.900 Overall Length: 3.625
- Product Description
- Technical Specifications
Description
Microstop Countersink Cage Description
Microstop countersink cages provide precise depth control by limiting the travel of the cutter being used, and aiding in the alignment of the cutter so that it is exactly perpendicular to the surface against which the cage rests.
All microstop units feature hardened and ground spindles. These are supported by bronze bushings (for general use), or needle bearings and ball bearings (for more demanding high-speed applications). Thrust bearings provide axial support while the micro-adjustment offers precise depth control. This cage offers a .001 depth adjustment.
Additional information
| Cutter Capacity | 5/8'' |
|---|---|
| Shaft Travel | 5/16'' |
| Spindle Thread | 1/4''-28 |
| Max RPM | 10000 |
| Skirt Diameter | 0.9 |
| Overall Length | 3.625 |
