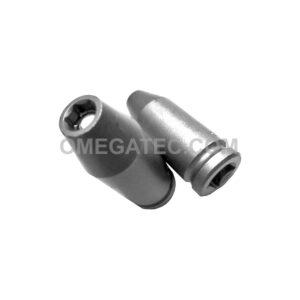

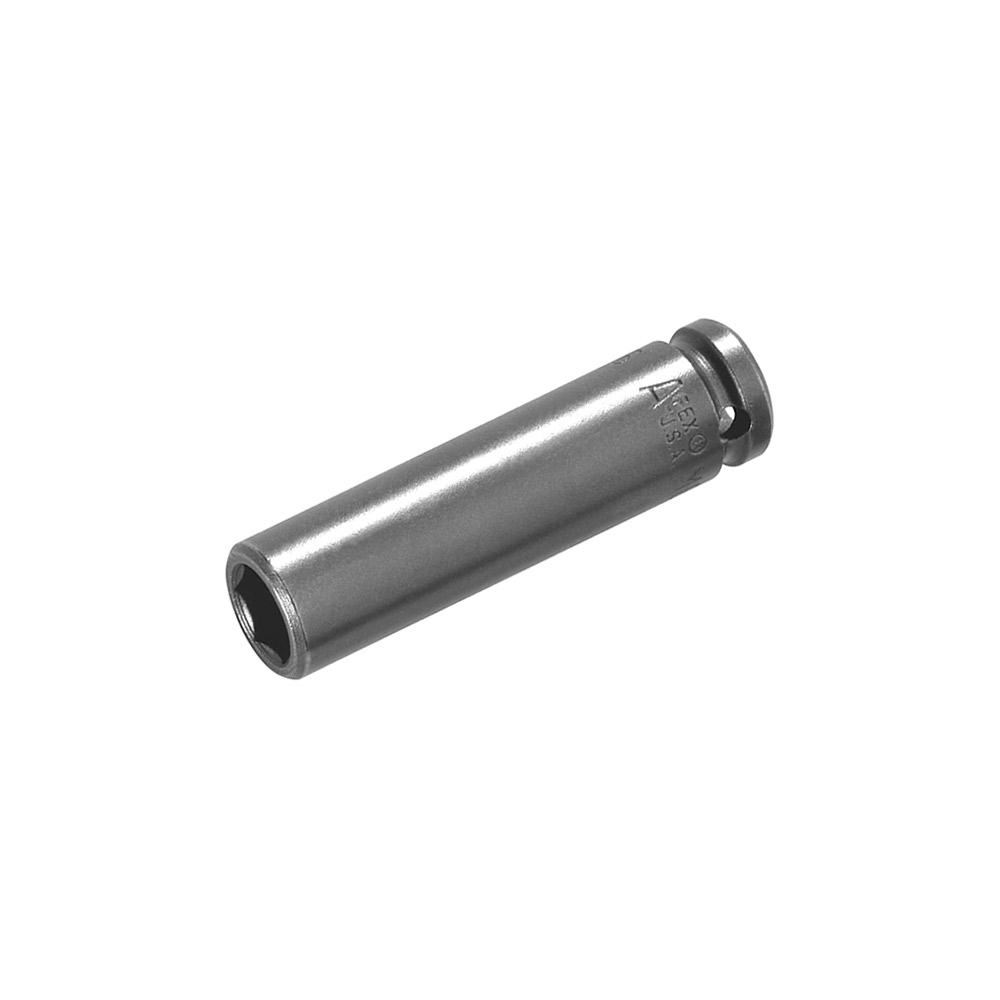

OSMB-8MM23 Apex 3/8” Square Drive Socket, Metric, Magnetic Bolt Clearaance, Long Length

Price: Price On Request

Part Number: OSMB-8MM23

Apex® 3/8” square drive magnetic bolt clearance metric sockets, long length, 6 point square drive opening, no groove ring. Hex Opening: 8mm Overall Length: 50.8mm Diameter Nose End: 11.7mm Diameter Drive End: 15.9mm Opening Depth: 4.8mm

Add to Quote

OSMB-8MM23 Apex 3/8” Square Drive Socket, Metric, Magnetic Bolt Clearaance, Long Length Description

Apex 8mm Magnetic Bolt Clearance Metric Long Socket, No Groove Ring, 3/8” Square Drive Description

Apex magnetic impact sockets hold the fastener in driving position, even when working straight down. Time-wasting motions are eliminated when starting fasteners or working in hard-to-reach areas. As the nut is run down, a spring-loaded or hollow cylinder magnet allows the bolt or stud to retract into the socket body. Nuts are held firmly in the socket. These Apex impact sockets are identified with a MB- prefix.

Impact sockets from Apex Fastener Tools, formally Cooper Tools, have hex tolerances that are on average 48% tighter than DIN and 35% tighter than ANSI requirements. Apex impact sockets provide an exact, sure fit every time. Impact sockets from Apex Fastener Tools provide the tightest tolerances for straightness and concentricity available.

High strength fasteners in the aviation industry or high performance automotive field often require the use of an impact wrench or impact driver to deliver the amount of torque required to tighten or loosen them. Impact sockets from Apex Fastener Tools are designed and manufactured for high impact use. Apex impact sockets are made from stronger alloy steel than the average impact socket.

Technical Specifications

Additional information

Hex Opening

8mm

Overall Length

50.8mm

Diameter Nose End

11.7mm

Diameter Drive End

15.9mm

Opening Depth

4.8mm
