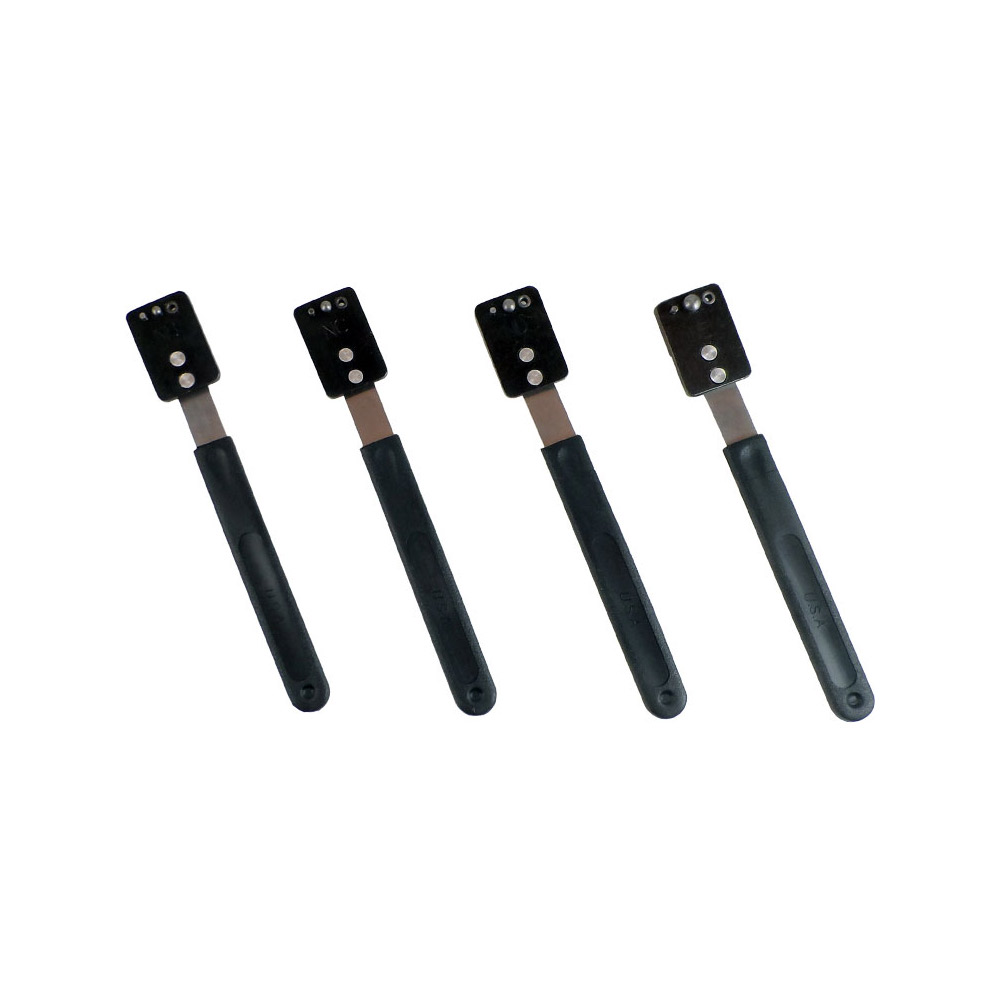

Two-Lug Double Wing Miniature Nut Plate Jig 4 Piece Set.
Two-Lug Double Wing Miniature Nut Plate Jig 4 Piece Set (DWM) Description
Two-lug double wing miniature nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies’ hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
Two-Lug Double Wing Miniature Nut Plate Jig 4 Piece Set (DWM) Includes:
NPJ518NB – Equivalent Part Number AT518NB
| (C) Hole Spacing | 0.218 |
|---|---|
| (J) Hole Spacing | 0.436 |
| (P) Pilot Diameter | 0.139 |
| (K) Drill Size | #40 |
| Equivalent Part Number | AT518NC |
Two-lug double wing miniature nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies’ hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
Two-Lug Double Wing Miniature Nut Plate Jig 4 Piece Set (DWM) Includes:
NPJ518NB – Equivalent Part Number AT518NB
| (C) Hole Spacing | 0.218 |
|---|---|
| (J) Hole Spacing | 0.436 |
| (P) Pilot Diameter | 0.139 |
| (K) Drill Size | #40 |
| Equivalent Part Number | AT518NC |
