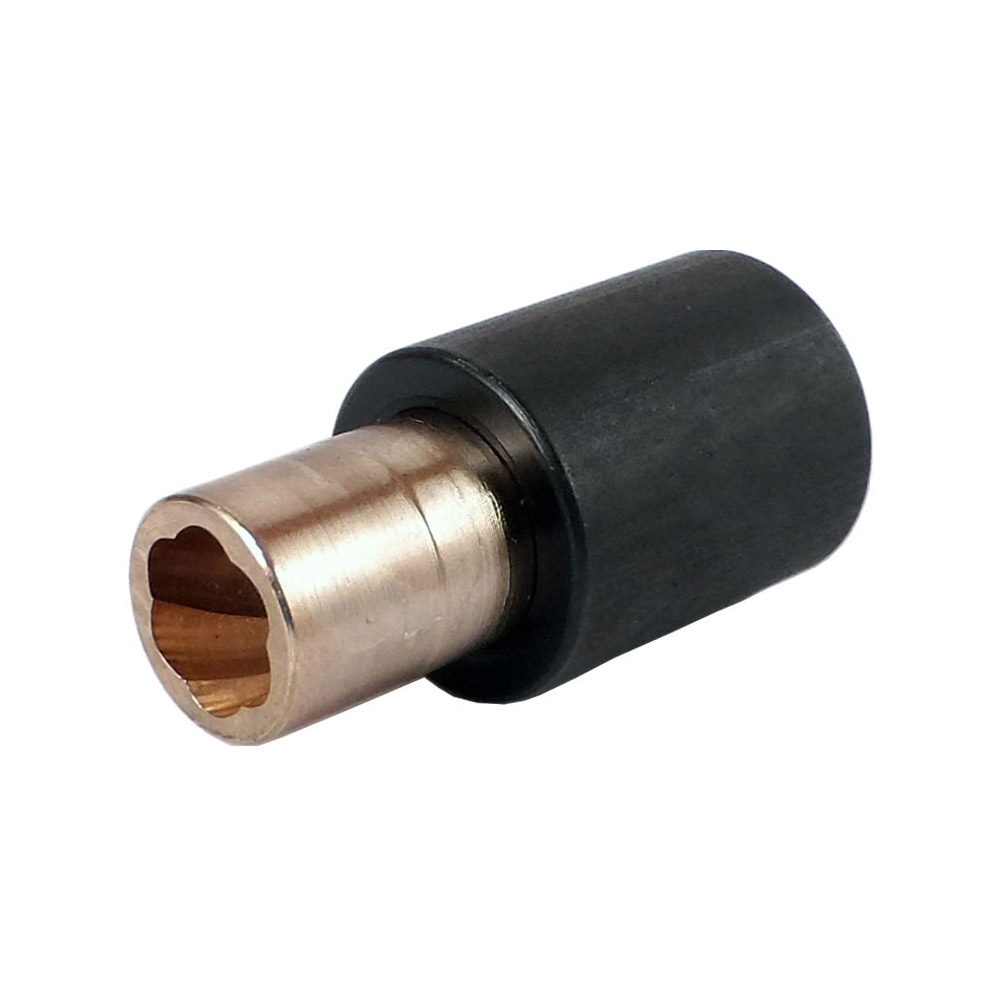

Savi-Socket Collar Remover with .32” socket opening and 3/8” female square drive. Eddie-Bolt® Compatible Collar Remover, Hi-Lok collar Remover, Hi-Lite Collar Remover. Removes 5/32” Eddie-Bolt Collars. Replaces part number RS100-EB8.
Savi-Socket For Hi-Lok And Hi-Lite #32A Description
Savi-Socket® Collar Remover with .32” socket opening and 3/8” female square drive. Eddie-Bolt® Collar Remover, Hi-Lok® Collar Remover, Hi-Lite® Collar Remover. Removes 1/4” Eddie-Bolt® Collars.
Savi-Sockets® are manufactured using high-strength tool steel. The socket is then heat-treated for optimum durability, and finished with a highly visible corrosion-resistant coating. The Savi-Socket® is suited for use on aluminum, steel, titanium, and all coated collars. As an anti-FOD measure, it incorporates a set screw for positive retention.
Eddie-Bolt® is a registered trademark of Howmet Aerospace Inc. or its subsidiaries.
| Nominal Collar Size | 1/4'' Eddie Bolt®, 1/4'' Hi-Lok® |
|---|---|
| Dash Size | -8 Eddie Bolt®, -8 Hi-Lok® |
| Square Drive Size | 3/8'' |
| Overall Length | 1 1/2'' |
| Top Of Collar Diameter (mm) | 8.2 |
| Top Of Collar Diameter (in.) | 0.32 |
| Replaces Part Numbers | RS100-EB8 |
Savi-Socket® Collar Remover with .32” socket opening and 3/8” female square drive. Eddie-Bolt® Collar Remover, Hi-Lok® Collar Remover, Hi-Lite® Collar Remover. Removes 1/4” Eddie-Bolt® Collars.
Savi-Sockets® are manufactured using high-strength tool steel. The socket is then heat-treated for optimum durability, and finished with a highly visible corrosion-resistant coating. The Savi-Socket® is suited for use on aluminum, steel, titanium, and all coated collars. As an anti-FOD measure, it incorporates a set screw for positive retention.
Eddie-Bolt® is a registered trademark of Howmet Aerospace Inc. or its subsidiaries.
| Nominal Collar Size | 1/4'' Eddie Bolt®, 1/4'' Hi-Lok® |
|---|---|
| Dash Size | -8 Eddie Bolt®, -8 Hi-Lok® |
| Square Drive Size | 3/8'' |
| Overall Length | 1 1/2'' |
| Top Of Collar Diameter (mm) | 8.2 |
| Top Of Collar Diameter (in.) | 0.32 |
| Replaces Part Numbers | RS100-EB8 |
